Breaking the Speed Barrier: How Non-Blocking Splash Screens Cut Android App Launch Time by 90%

A case study on optimizing Android splash screen performance through architectural innovation, including the trade offs you need to know.

Overview

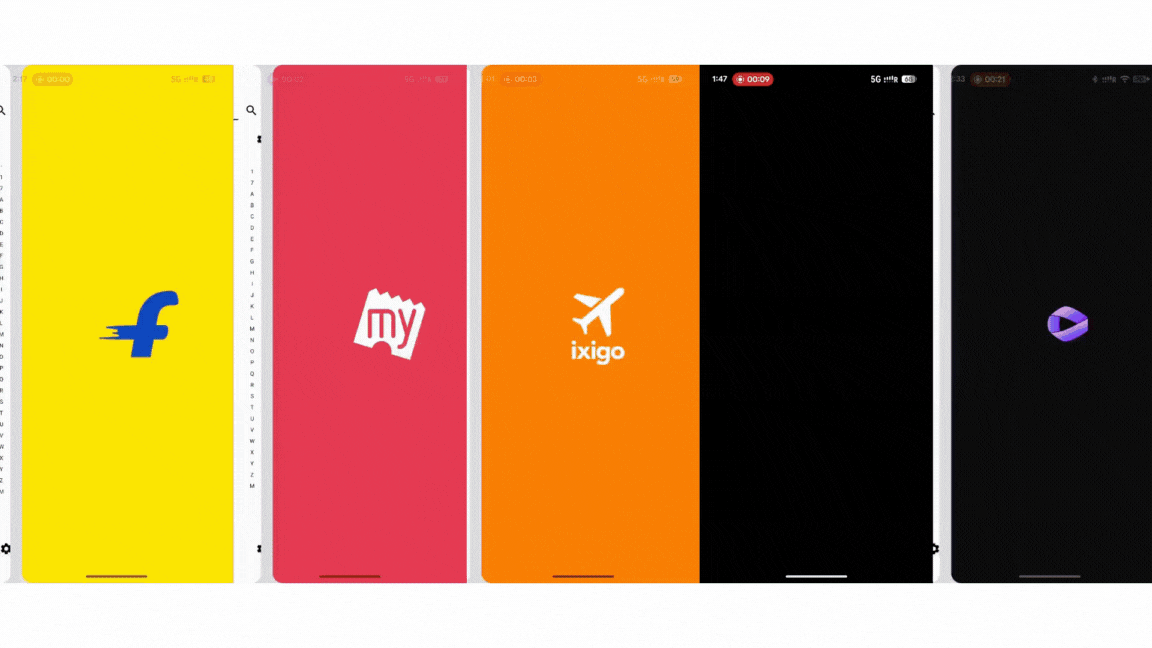

It's the festive season and we see the beautiful splash screens and custom logos on every app. While developing these every Android developer faces the splash screen dilemma: users expect beautiful, branded launch experiences, but Google's native splash screen API has significant limitations. The common solution creating a custom SplashActivity, seems logical but introduces a hidden performance penalty that can make your app feel sluggish and unresponsive.

To address this challenge, I developed a test library named EventSplash, this library implements a non-blocking splash screen approach. The complete implementation and benchmarking code is available on GitHub: fast-splash-experiment.

This case study presents empirical evidence from a controlled experiment comparing traditional activity-based splash screens with an innovative view-based approach. Using conservative, apples-to-apples comparisons, the results show: 90% reduction in page load time, 78% improvement in First Contentful Paint and 41% faster Fully Painted Time.

We'll explore the dramatic benefits possible with complex animations like Lottie, while being transparent about the trade-offs and resource costs of concurrent processing.

Mini-Glossary

The Hidden Cost of Beautiful Splash Screens

The Problem Statement

Google's native Android 12+ SplashScreen API provides excellent performance but limited customization options [1]. It doesn't support:

This forces developers toward custom implementations, typically using a dedicated SplashActivity. While this approach offers creative freedom, it creates a blocking sequence that delays the main app content.

Why Traditional Splash Activities Hurt Performance

The Android documentation emphasizes that apps should optimize for cold starts, as this "can improve the performance of warm and hot starts as well" [2]. However, traditional splash implementations work against this principle.

When you use a separate SplashActivity, the system must:

This sequential process means your main content cannot begin loading until the splash completes, a fundamental architectural flaw that impacts user-perceived performance.

The Journey: Exploring Different Approaches

Before arriving at the final EventSplash implementation, I explored several approaches. Understanding these explorations provides valuable context for the final design decisions and demonstrates the iterative nature of performance optimization.

Discarded Approach: The Translucent Activity Overlay

One initial idea was to use a SplashActivity with a translucent theme to overlay the MainActivity. The theory was that the MainActivity could load in the background while the splash screen was displayed on top.

Launch Sequence:

Why it was discarded:

This approach resulted in a 14% performance degradation. The issue lies in how Android handles activity lifecycles and rendering. The system does not truly launch both activities in parallel. Instead, it creates a sequential dependency and the GPU is forced to compose two separate activity buffers, which incurs significant overhead in terms of RAM, battery and sometimes even disables window transition animations.

As noted in the Android documentation on translucent activities [3]:

This blending operation is exactly what caused the performance degradation.

The Winning Approach: The Gated Splash Screen Mechanism

I ultimately landed on a more sophisticated approach that involves a gated splash screen mechanism. This method uses a ViewTreeObserver.OnPreDrawListener to block all UI rendering until specific conditions are met.

How it works:

Key Implementation:

// The gate mechanism

gate.onPreDraw() → returns false = BLOCK all drawing

gate.onPreDraw() → returns true = ALLOW drawing to proceed

This approach aligns perfectly with the official Android documentation recommendation for keeping splash screens on-screen longer [1]:

The EventSplash library extends this concept to provide frame-perfect control over what the user sees during app startup, preventing any content flash and ensuring a seamless experience.

The Experiment: Measuring Real-World Impact

Test Environment

All testing code and scripts are available in the GitHub repository for reproducibility.

Implementation Approaches Tested

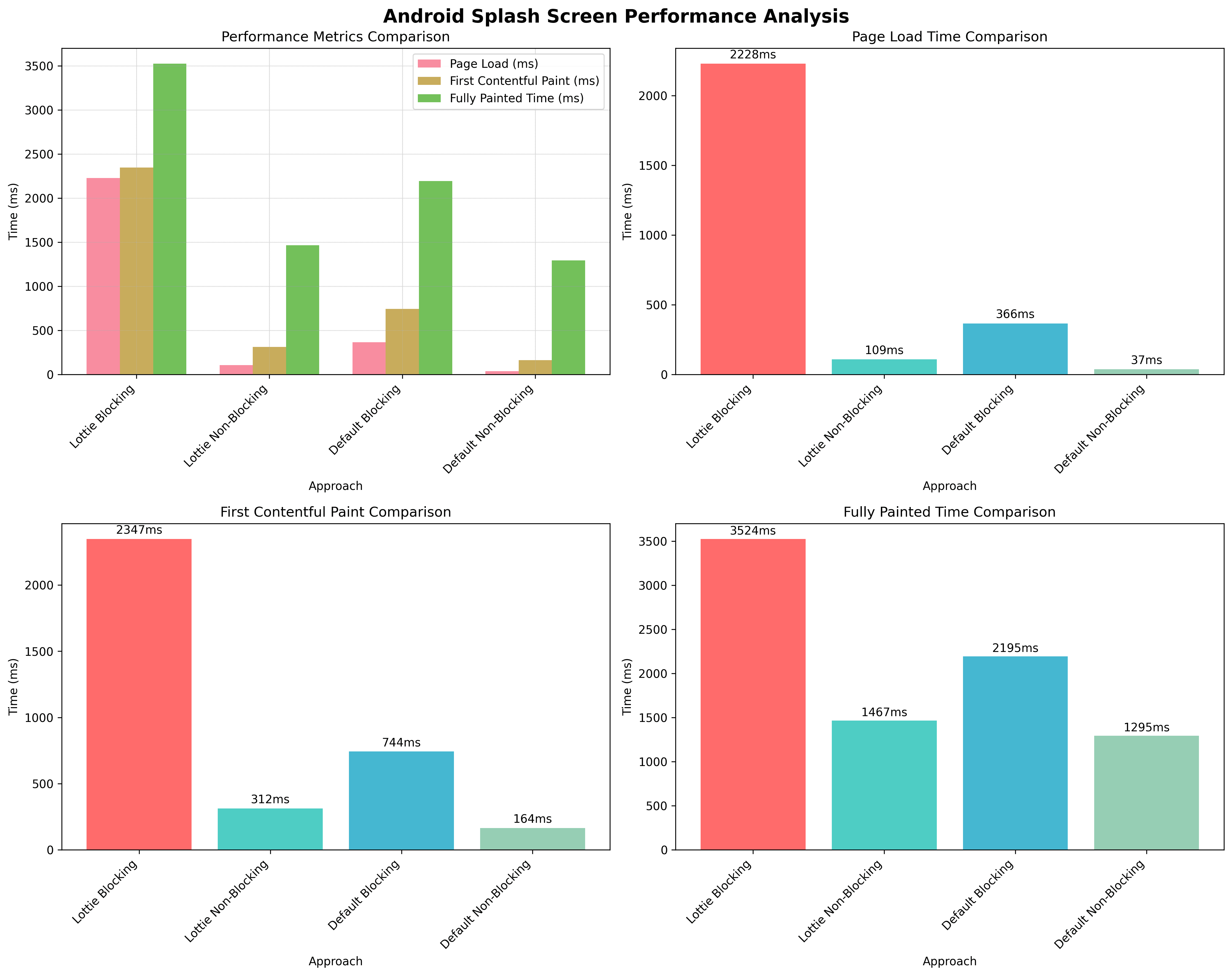

Results: Conservative Claims with Dramatic Potential

The Honest Comparison: Default Splash Performance

For apples-to-apples comparison, we focus on the default splash implementations where the blocking approach simply inflates an activity for routing purposes:

The Lottie Animation Advantage

When we introduce complex Lottie animations, the architectural difference becomes even more pronounced:

Understanding the Lottie Numbers

Important Note: The blocking Lottie numbers include the animation duration by design, the user must wait for the entire animation to complete before seeing any main content. In the non-blocking approach, both the animation and content loading run in parallel, so by the time the Lottie animation finishes, the FPT is typically already complete or nearly complete.

This parallel execution is the key architectural advantage: you get beautiful animations without sacrificing performance.

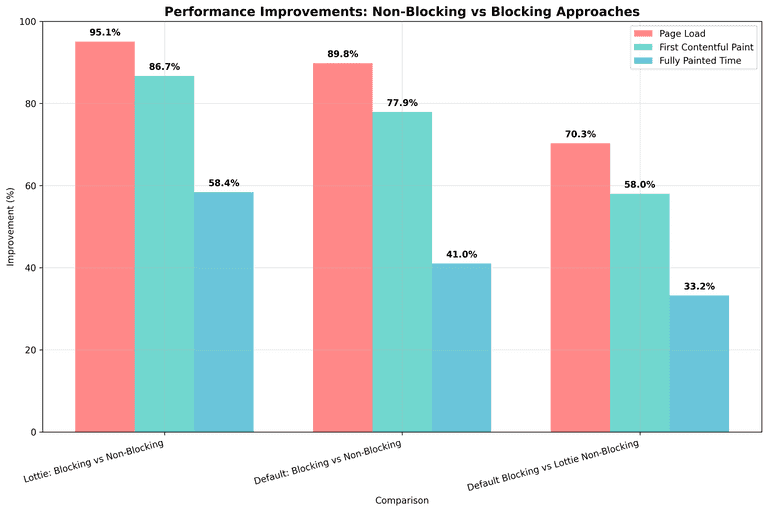

Performance Improvements Breakdown

Recap: What Happened

Even with conservative default splash comparisons, the non-blocking approach achieved 90% faster page load times. The user experience transformation is from "noticeable delay" to "smooth and responsive."

With complex animations like Lottie, the benefits become even more dramatic because the traditional approach forces users to wait for the entire animation sequence before any meaningful content appears.

Why: The Technical Mechanism

The performance gains stem from parallel execution. While the traditional approach runs splash and main content sequentially, the view-based approach runs them concurrently:

Traditional (Sequential):

Splash Activity → Animation → Destroy → Main Activity → Content Load → Display

Non-Blocking (Parallel):

Main Activity + Content Load (background)
     ↓
Splash View (overlay) → Remove overlay → Display loaded content

This architectural difference eliminates the blocking bottleneck entirely.

Deep Dive: Understanding the Technical Implementation

Traditional Splash Activity Implementation

class SplashActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        installSplashScreen()
        enableEdgeToEdge()
        setContent {
            Loader { // Blocks until animation completes
                startActivity(Intent(this@SplashActivity, MainActivity::class.java))
            }
        }
    }

    @Composable
    fun Loader(onComplete: () -> Unit) {
        val composition by rememberLottieComposition(LottieCompositionSpec.RawRes(R.raw.sale_tags))
        val progress by animateLottieCompositionAsState(composition)

        // Animation blocks main content loading
        if (progress == 1.0f) {
            onComplete.invoke()
        }
    }
}

EventSplash: Non-Blocking Implementation

class EventSplash(
    private val activity: ComponentActivity,
    private val config: EventSplashConfig,
) {
    private val decorView: ViewGroup = activity.window.decorView as ViewGroup
    private var composeView: ComposeView? = null

    // Gate prevents premature display until main content ready
    private val gate = object : ViewTreeObserver.OnPreDrawListener {
        override fun onPreDraw(): Boolean {
            return if (isReady) {
                decorView.viewTreeObserver.removeOnPreDrawListener(this)
                true
            } else false
        }
    }

    init {
        decorView.viewTreeObserver.addOnPreDrawListener(gate)
        setupSplashCompose() // Non-blocking overlay
        isReady = true
    }

    private fun setupSplashCompose() {
        val view = ComposeView(activity).apply {
            layoutParams = ViewGroup.LayoutParams(MATCH_PARENT, MATCH_PARENT)
            setContent {
                getProvider(config).Content(onFinish = { dismiss() })
            }
        }
        composeView = view
        decorView.addView(view) // Overlay on main content
    }
}

Usage Comparison

Traditional Approach:

// Requires separate activity, blocks main content
class MainActivity : ComponentActivity() {
    // Main content only loads after splash completes
}

EventSplash Approach:

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // Non-blocking: splash displays while content loads
        EventSplashApi.attachTo(this).with(getSaleConfig()).show()

        setContent {
            // Main content loads immediately in parallel
            MainAppContent()
        }
    }
}

Recap: Implementation Differences

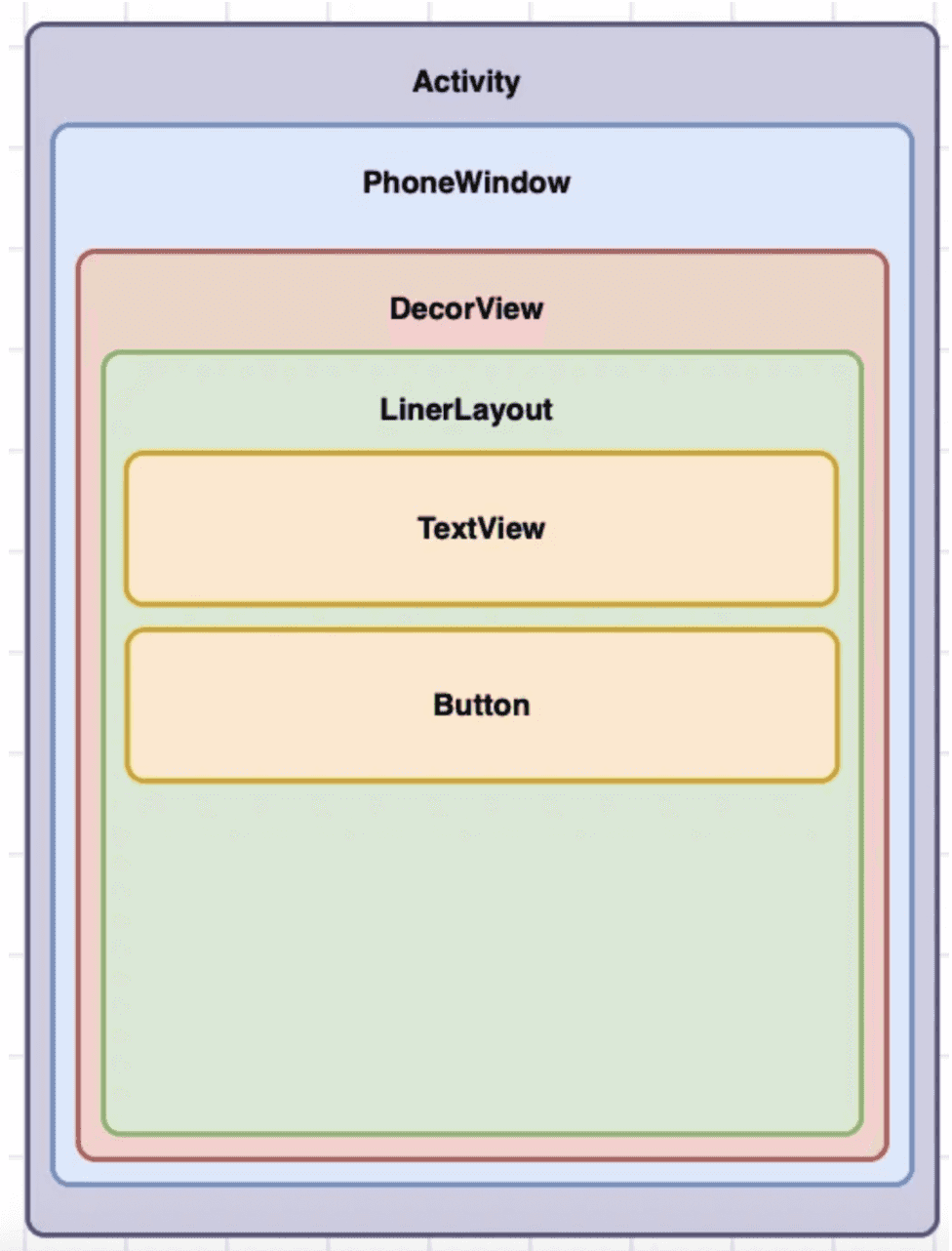

The traditional approach requires a separate activity lifecycle, while EventSplash injects a view overlay that coexists with the main content loading process.

Why: Architectural Advantages

The Choreographer.doFrame Problem

Understanding Frame Rendering Issues

Android's rendering system relies on Choreographer.doFrame to coordinate animations, input, and drawing [4]. The documentation warns:

Why Splash Activities Cause Jank

Traditional splash implementations create multiple performance bottlenecks:

Perfetto Analysis Insights

When analyzing traces with Perfetto, traditional splash screens show:

The view-based approach eliminates these issues by maintaining a single rendering context throughout the startup process.

The Other Side of the Coin: Hidden Costs and Trade-offs

⚠️ Critical Consideration: Concurrent Processing Isn't Free

While our results show significant performance improvements, the non-blocking approach introduces its own set of challenges that must be carefully considered. Running splash animations concurrently with main content loading creates additional resource pressure that doesn't exist in sequential approaches.

Memory Pressure: The Primary Concern

Peak Memory Usage Increase:

// Memory usage pattern comparison
Traditional Approach:
Splash: 50MB → 0MB → Main Content: 120MB = Peak: 120MB

Non-blocking Approach:
Splash + Main Content: 50MB + 120MB = Peak: 170MB

Real-world Impact:

Low Memory Killer Risk

Android's Low Memory Killer daemon monitors system memory and can terminate apps under pressure [5]:

Risk Factors:

CPU and Battery Implications

Increased CPU Overhead:

Power Consumption Concerns: Research shows that "UI rendering on smartphones needs powerful CPU and GPU to meet user-perceived smoothness, and it contributes a significant portion of energy consumption" [6].

Device Compatibility Challenges

Low-End Device Considerations:

When NOT to Use Non-Blocking Approach

Scenarios Where Traditional Approach May Be Better:

Risk Mitigation Strategies

Adaptive Implementation:

class AdaptiveSplashStrategy {
    fun chooseSplashApproach(): SplashConfig {
        return when {
            isLowEndDevice() -> SimpleSplashConfig()
            isBatteryLow() -> ReducedAnimationConfig()
            isHighPerformanceDevice() -> FullLottieConfig()
            else -> DefaultConfig()
        }
    }

    private fun isLowEndDevice(): Boolean {
        val activityManager = getSystemService(Context.ACTIVITY_SERVICE) as ActivityManager
        return activityManager.isLowRamDevice ||
               Runtime.getRuntime().maxMemory() < 256 * 1024 * 1024
    }
}

Memory Monitoring:

private fun monitorMemoryPressure() {
    val memoryInfo = ActivityManager.MemoryInfo()
    activityManager.getMemoryInfo(memoryInfo)

    if (memoryInfo.lowMemory) {
        // Fallback to simpler splash
        simplifyOrDismissSplash()
    }
}

Industry Context and Validation

Alignment with Industry Best Practices

The EventSplash approach aligns with recent industry trends and official recommendations. Companies like Turo have achieved similar results by eliminating dedicated splash activities. As reported in their case study [7]:

Turo achieved a 77% reduction in startup time using similar principles.

Validation Through Official Documentation

The approach is further validated by the official Android documentation's explicit recommendation to use ViewTreeObserver.OnPreDrawListener for splash screen management [1], which is exactly what EventSplash implements at its core.

Best Practices and Common Pitfalls

Do's ✅

Don'ts ❌

Common Pitfalls

Making Informed Architectural Decisions

Decision Framework

When choosing between splash screen approaches, consider:

Device Demographics:

App Characteristics:

Business Requirements:

Recommended Strategy

Progressive Enhancement Approach:

EventSplashApi.attachTo(this)
    .withFallback(SimpleSplashConfig())        // Low-end devices
    .withStandard(ImageSplashConfig())         // Mid-range devices
    .withEnhanced(LottieConfig())              // High-end devices
    .adaptToDevice()                           // Automatic selection
    .show()

This approach provides:

Insights & Recommendations

The non-blocking splash screen approach offers significant performance improvements (90% faster page load in conservative testing, up to 95% with complex animations), but it's not without trade-offs. Concurrent processing increases peak memory usage and CPU overhead, which can be problematic on low-end devices.

Key insight: The benefits are substantial and measurable, but they come with resource costs that must be managed through adaptive implementation strategies.

Honest recommendation: Use the non-blocking approach with device-aware fallbacks. Even conservative estimates show dramatic performance gains and the architectural advantages are compelling. However, the implementation must be sophisticated enough to handle the full spectrum of Android devices.

Conclusion

This case study demonstrates that performance optimization requires balancing competing constraints while maintaining honest claims. The non-blocking, view-based approach offers substantial, measurable benefits, but successful implementation demands a deep understanding of both the gains and the costs.

By moving away from the traditional SplashActivity pattern and embracing a more sophisticated, concurrent architecture, we can build faster, more responsive Android apps that work reliably across the entire ecosystem.

The goal is not just building faster apps, but building apps that feel instantaneous and delightful to use, because in the end, performance is a feature that users notice and appreciate.

References
